EP40050HV 409.6V50AH 20kWh

- Stackable home energy storage battery system
- Top branded A+ battery cells
- Intelligent BMS for remote control
- High voltage, high efficiency, water proof
- Customized design available

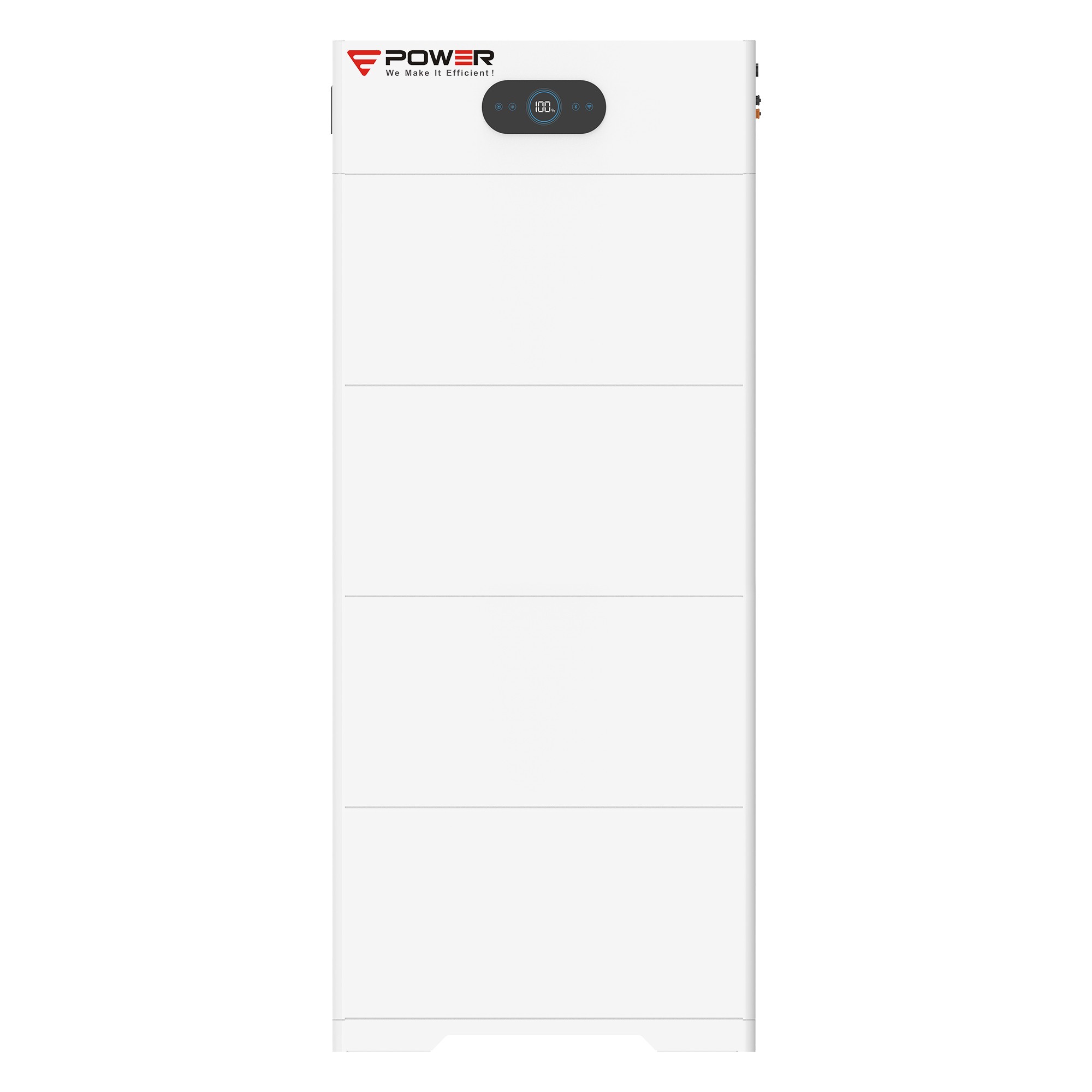

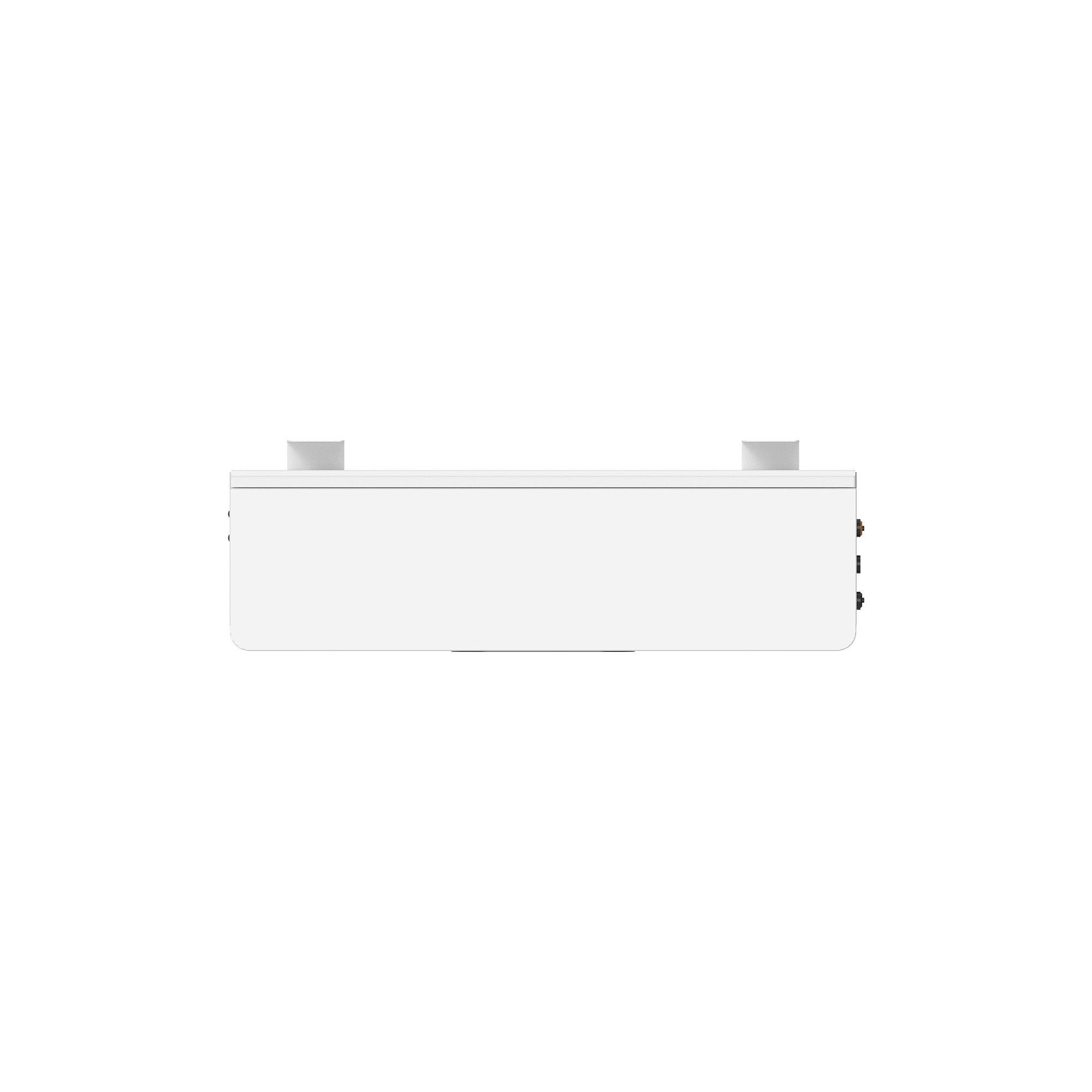

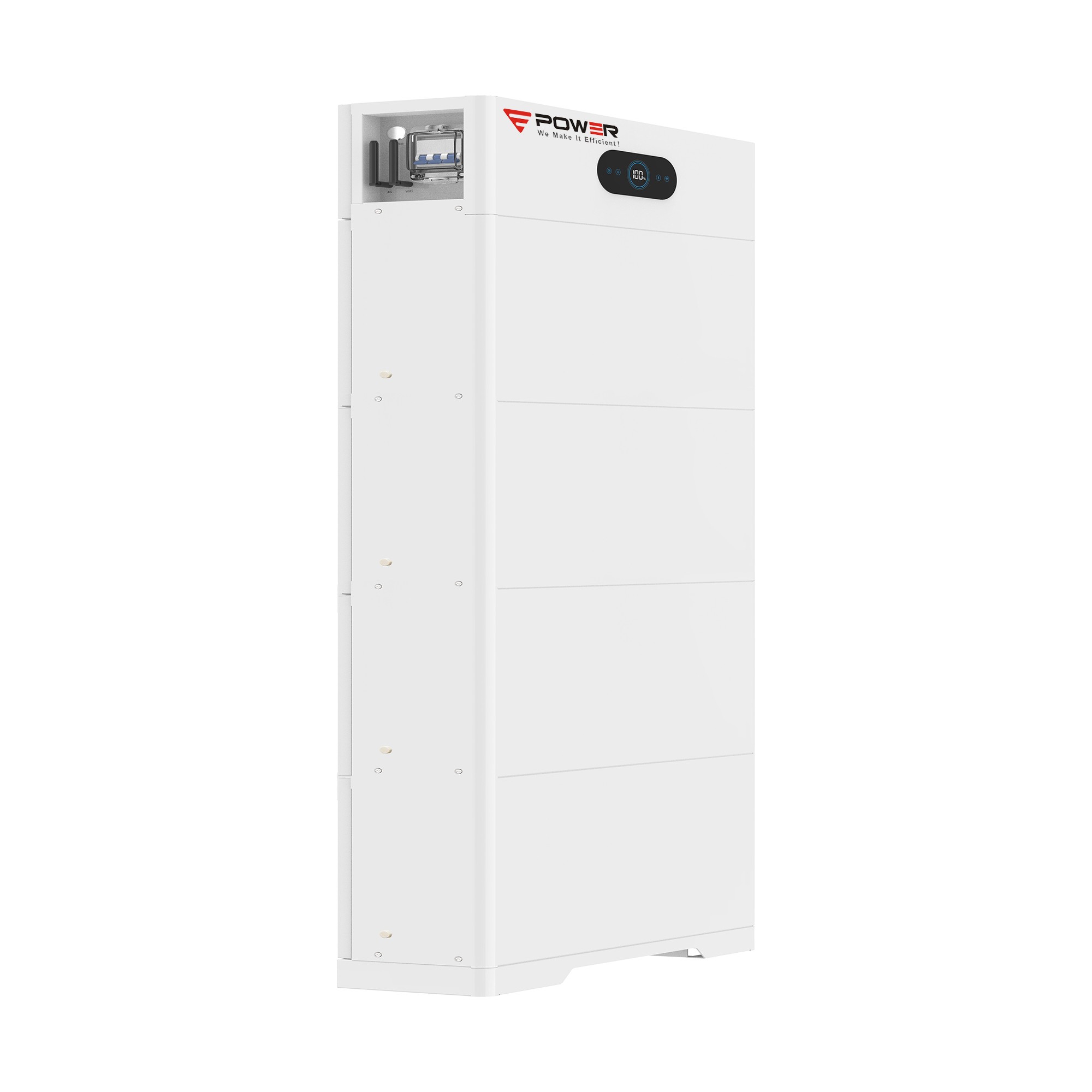

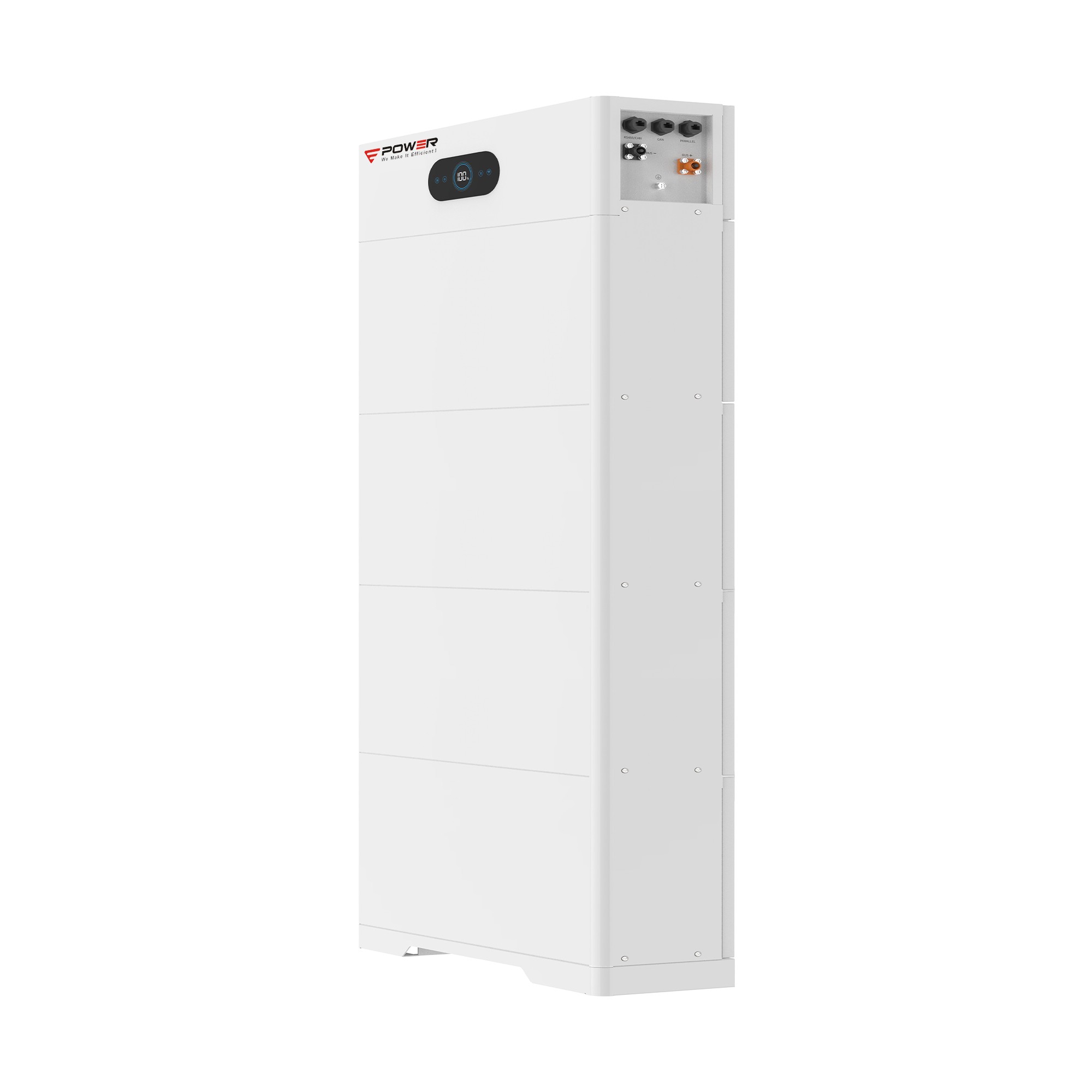

Home Solar Energy Storage Battery 20KWH EP40050HV 409.6V50AH

Battery Pack Model No.	EP40050HV
Nominal Voltage	409.6V
Nominal Capacity	50Ah (20.48kWh)
Battery Type	LiFePO4
BMS	Built-in smart BMS with SOC
Open Voltage	294.4V-460.8V
Max. Discharging Current	52A
Max. Charging Current	52A
Load Power	≤ 20.48kW
Charging Efficiency	100% at 0.2C
Discharging Efficiency	96% ~ 99% at 1C
Self Discharge Rate	≤ 2% / month （25℃）
Life Cycle	≥ 6000 (80% DOD, 25℃)
Water Proof Rating	IP65
Charging Temperature	0 ~ 45℃
Discharging Temperature	-20 ~ 60℃
Storage Temperature	-10 ~ 45℃
Communication Protocals	CANBus / RS485 / RS232 (customization available)
Dimension	655(L)189(W)1510(H)mm
Weight	≈ 213kg
Certificates	UL, CE, ROHS, MSDS, KC, BIS, UN38.3 etc.
