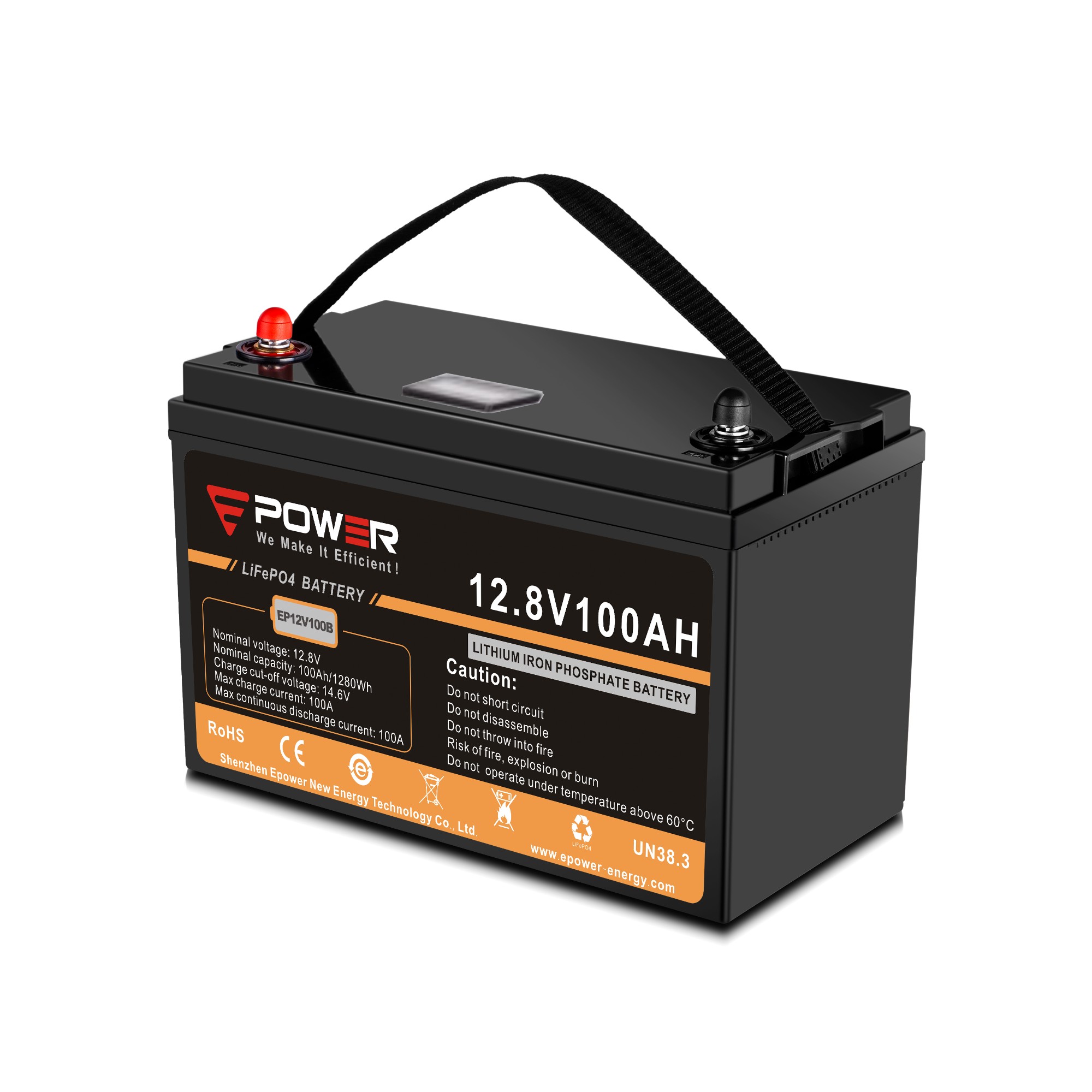

EP12V100B 12.8V100Ah

- LiFePO4 battery pack with plastic case
- Top brand A+ grade battery cells
- 10 years product design experience
- More than 4500 life cycles
- Built-in BMS with smart control
- Application: electric vehicles, boats, UPS, solar street lights, etc

LiFePO4 Battery Pack EP12V100B 12.8V100Ah

Battery Pack Model No.	EP12V100B
Nominal Voltage	12.8V
Nominal Capacity	100Ah (1280Wh)
Serial & Parallel Connection	4S1P
BMS	Built-in with Bluetooth module
Display Screen	Voltage, Current, Temperature, SOC
Open Voltage	12.8V ~ 13.2V
Charging Cut-off Voltage	14.6V
Discharging Cut-off Voltage	10.0V
Max. Discharging Current	100A
Max. Charging Current	100A
Load Power	≤ 1280W
Internal Resistance	≤ 20mΩ
Self Discharge Rate	≤ 2% / month （25℃）
Life Cycle	≥ 4500 (80% DOD, 25℃)
Water Proof Rating	IP65
Charging Temperature	0 ~ 45℃
Discharging Temperature	-20 ~ 60℃
Storage Temperature	-10 ~ 45℃
Dimension	330(L)172(W)215(H)mm
Weight	≈ 12kg
Certificates	UL, CE, ROHS, MSDS, KC, BIS, UN38.3 etc.
