EP24V100B 25.6V100Ah

- LiFePO4 battery pack with plastic case
- Top brand A+ grade battery cells
- 10 years product design experience
- More than 4500 life cycles
- Built-in BMS with smart control
- Application: electric vehicles, boats, UPS, solar street lights, etc

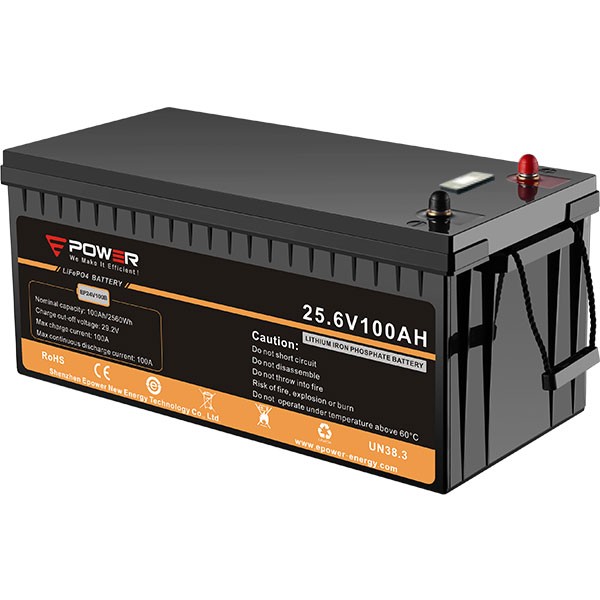

LiFePO4 Battery Pack EP24V100B 25.6V100Ah

Battery Pack Model No.	EP24V100B
Nominal Voltage	25.6V
Nominal Capacity	100Ah (2560Wh)
Serial & Parallel Connection	8S1P
BMS	Built-in with Bluetooth module
Display Screen	Voltage, Current, Temperature, SOC
Open Voltage	25.6V ~ 26.4V
Charging Cut-off Voltage	29.2V
Discharging Cut-off Voltage	20.0V
Max. Discharging Current	100A
Max. Charging Current	100A
Load Power	≤ 2560W
Internal Resistance	≤ 80mΩ
Self Discharge Rate	≤ 2% / month （25℃）
Life Cycle	≥ 4500 (80% DOD, 25℃)
Water Proof Rating	IP65
Charging Temperature	0 ~ 45℃
Discharging Temperature	-20 ~ 60℃
Storage Temperature	-10 ~ 45℃
Dimension	522(L)240(W)218(H)mm
Weight	≈ 21.5kg
Certificates	UL, CE, ROHS, MSDS, KC, BIS, UN38.3 etc.
